Structure of the auto tee-up

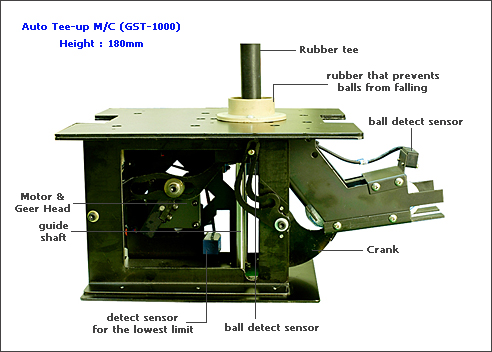

1. Name of each part (H:180mm)



2. Materials (180mm Model)

- Model Name: GST - 1000AT

- Product Name: Auto Tee-up Machine

- Height of the rubber tee: 80mm

- Adjustment of the tee height: 0~55 levels

- Turnaround tine: 3~4รส (adjustable)

- Sensor: AUTONICS(BYD90-DDT), TAKEX(G8208N), SANIL(8D-17F-5DN)

- Motor: 375/450 RPM

- Power Transmission: CAM Mechanism

- Detect distance of the ball detect sensor: 150 ~ 200mm

- Control Type: Full-automated control by mi-com
