GST - 2000AT (Semi-Automatic)

 Product configuration and working principle (underground)

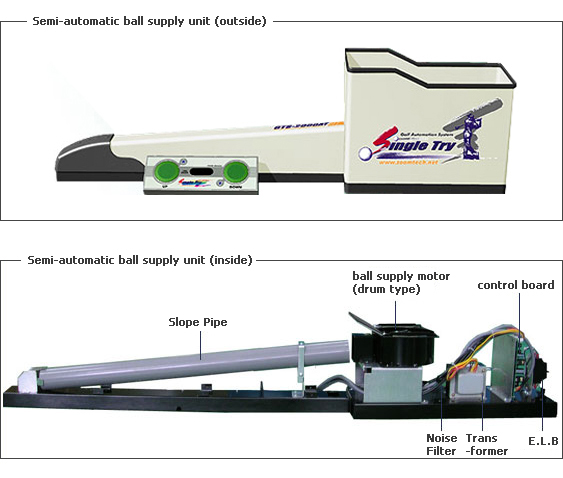

1-1 Configuration of the ball feeder and its name



1-2 Characteristics of the ball supply unit

1. Refined design by integrating the ball box, control part and supply part.

2. Storing capacity with more than 200 balls in the ball box.

3. Stable ball supply and minimized noise by equipping the drum type motor.

4. Full automated system by my com control system.

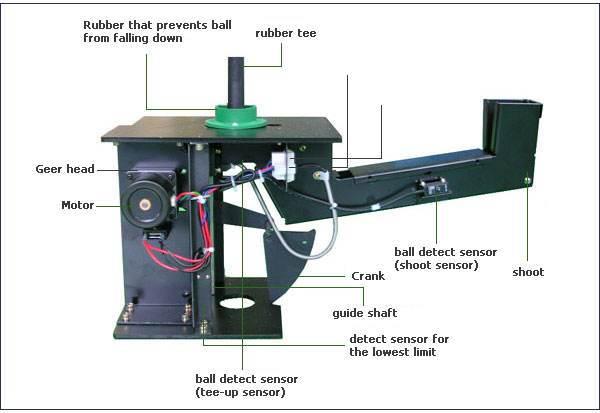

2-1 Structure of the Tee-up Machine





2-2 Working principle of the Tee-up machine

1. When the ball is removed from the rubber tee (after shot), the tee-up sensor detects it has no ball.

2. The motor drives the rubber tee to its lowest limit.

3. When the rubber tee descends, the ball is supplied on top of the rubber tee by the crank.

4. The rubber tee ascends by backlashing of the motor.

5. When the shoot sensor detects that there is no ball, the balls are automatically supplied from the ball box.
