GST - 2000AT (Semi-Automatic)

 Product configuration and working principle (ground)

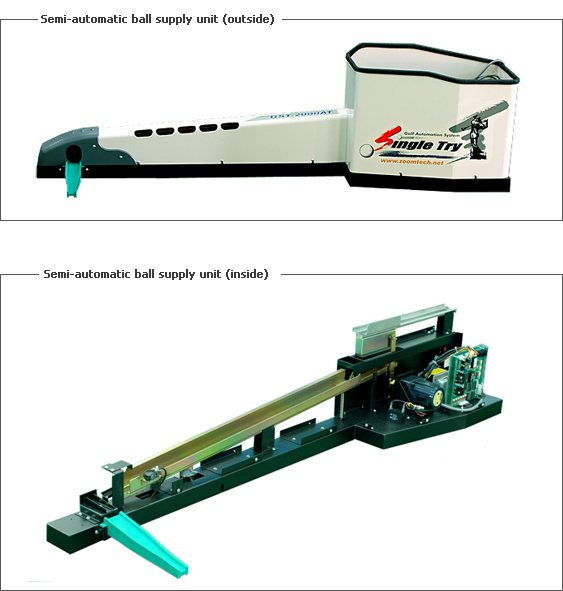

1-2 Characteristics of the ball supply unit

1. Refined design by integrating the ball box, control part and supply part.

2. Storing capacity with over 200 balls in the ball box

3. Ball supply part with vertical tumbler rail type

4. Simplified Tee-up principle using the natural slopes

5. Full-automated system by mi-com control system

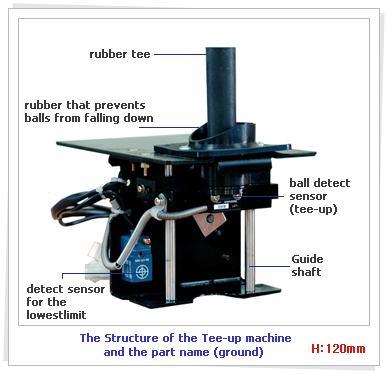

2-1 Structure of the Tee-up machine



2-2 Working principle

1. When the ball is removed from the rubber tee (after shot), the tee-up sensor detects it has no ball.

2. The motor drives the rubber tee to its lowest limit.

3. When the rubber tee descends, the ball is supplied on top of the rubber tee by the crank.

4. When the tee-up sensor detects the ball, the rubber tee ascends by the motor.

5. The balls are automatically supplied by the ball supply part.
